Z3-FIRE
Fire Rescue
AWAH Z3-FIRE

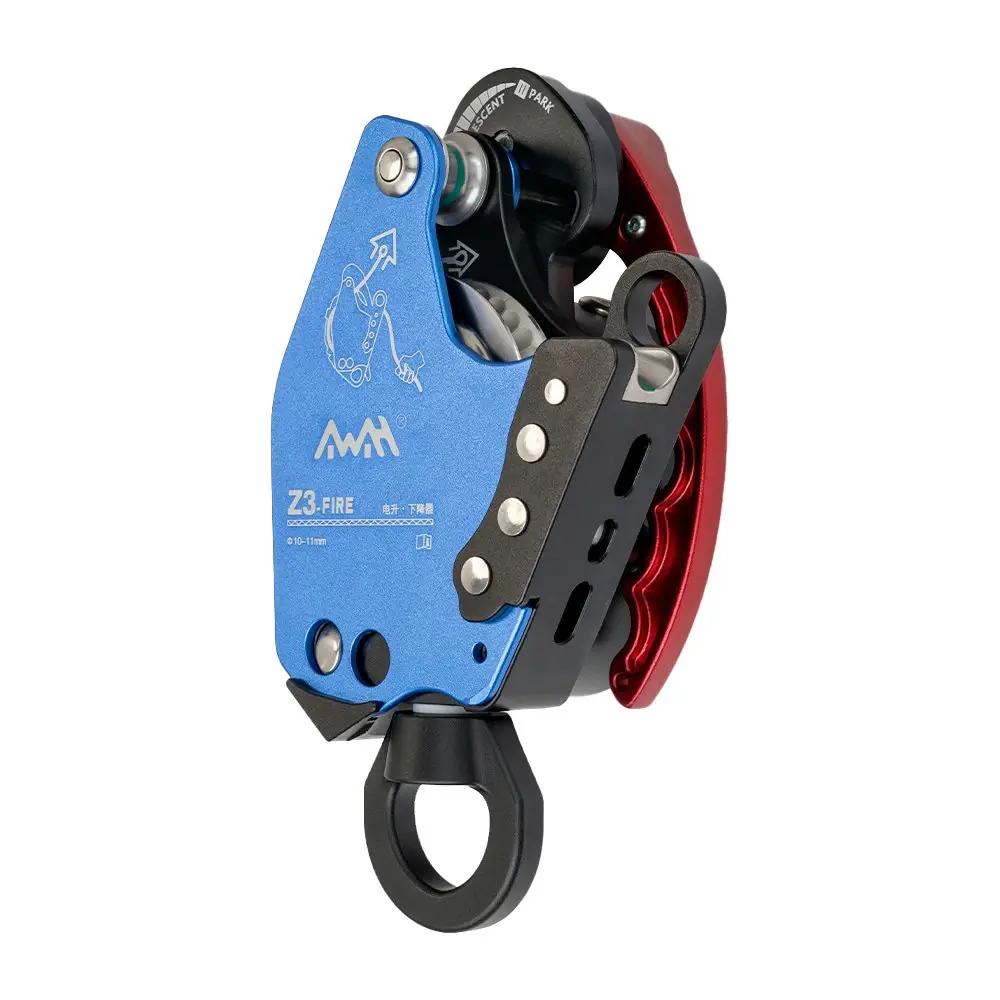

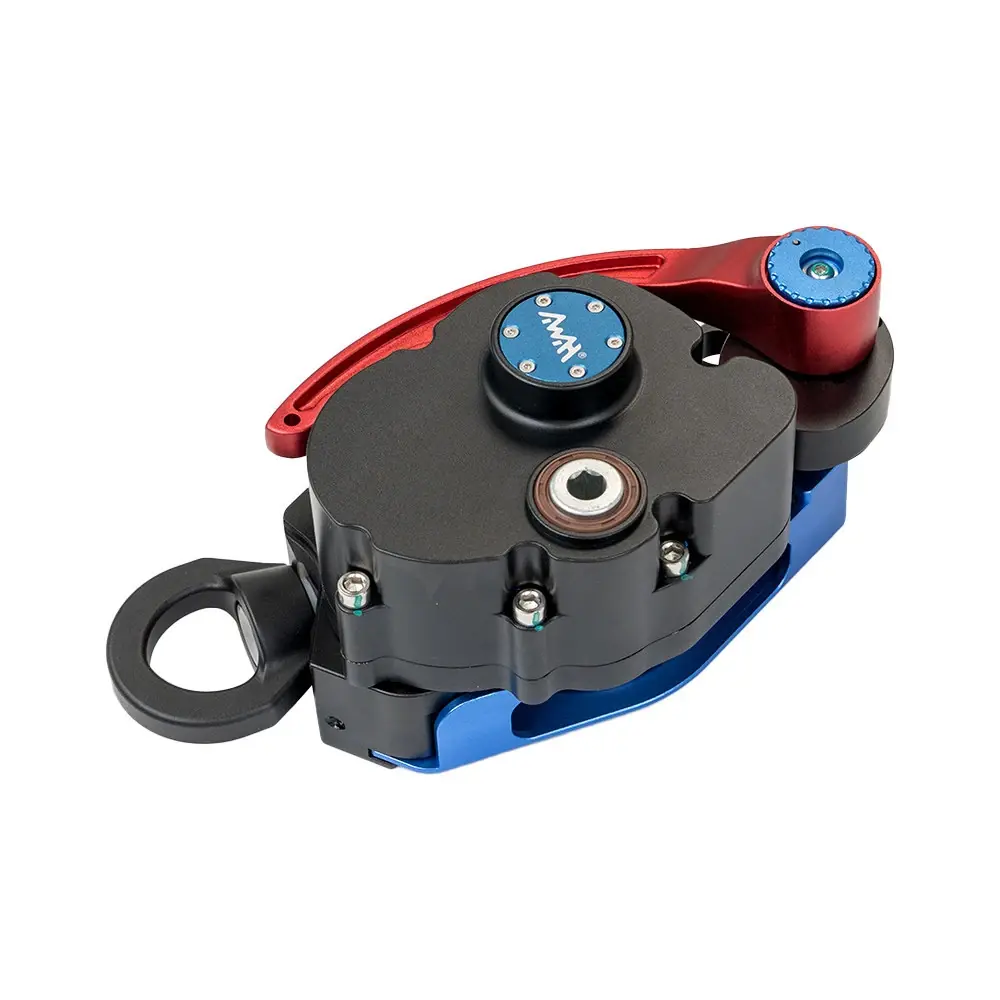

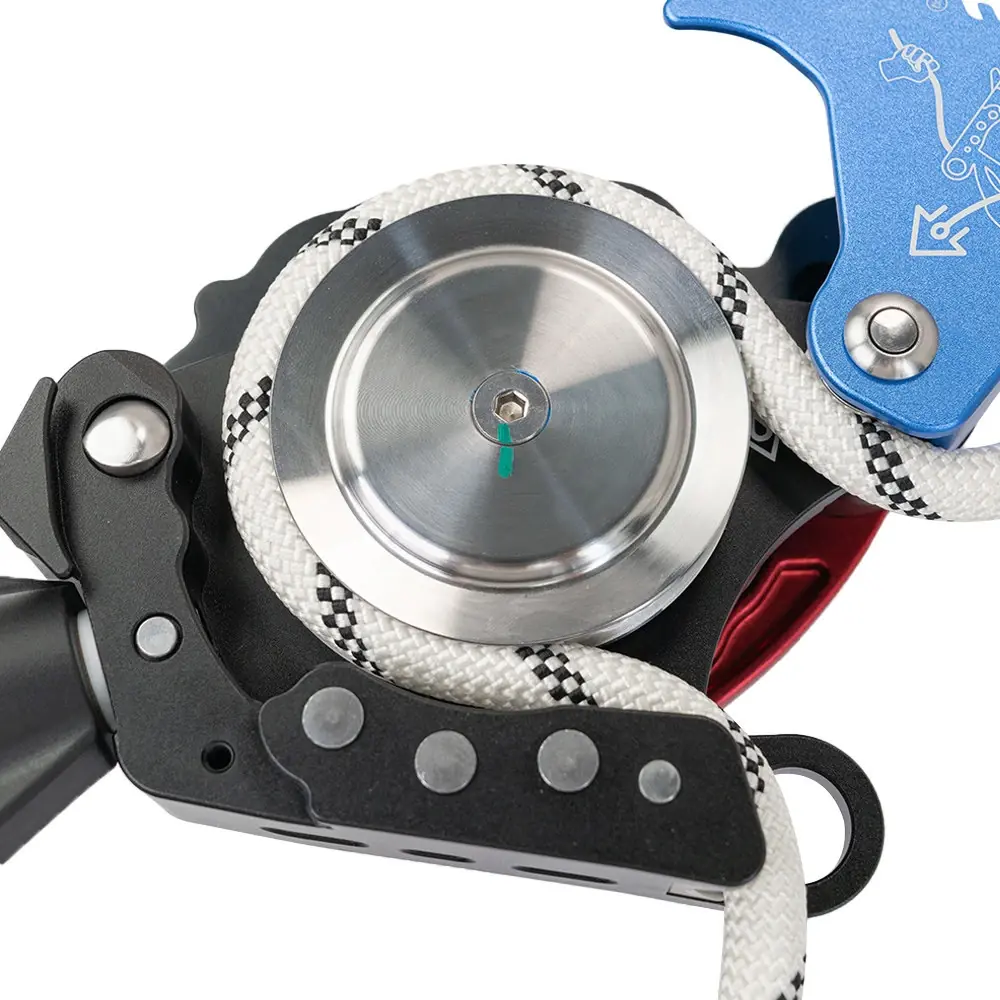

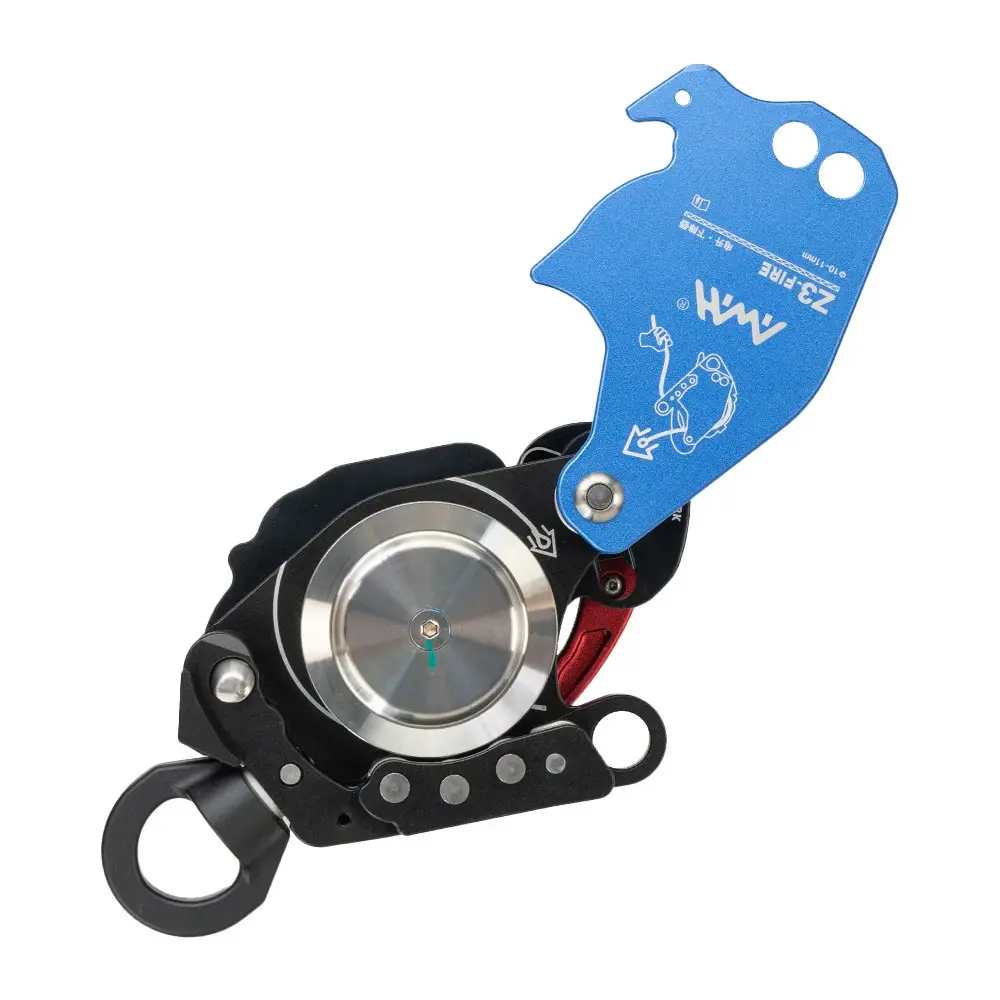

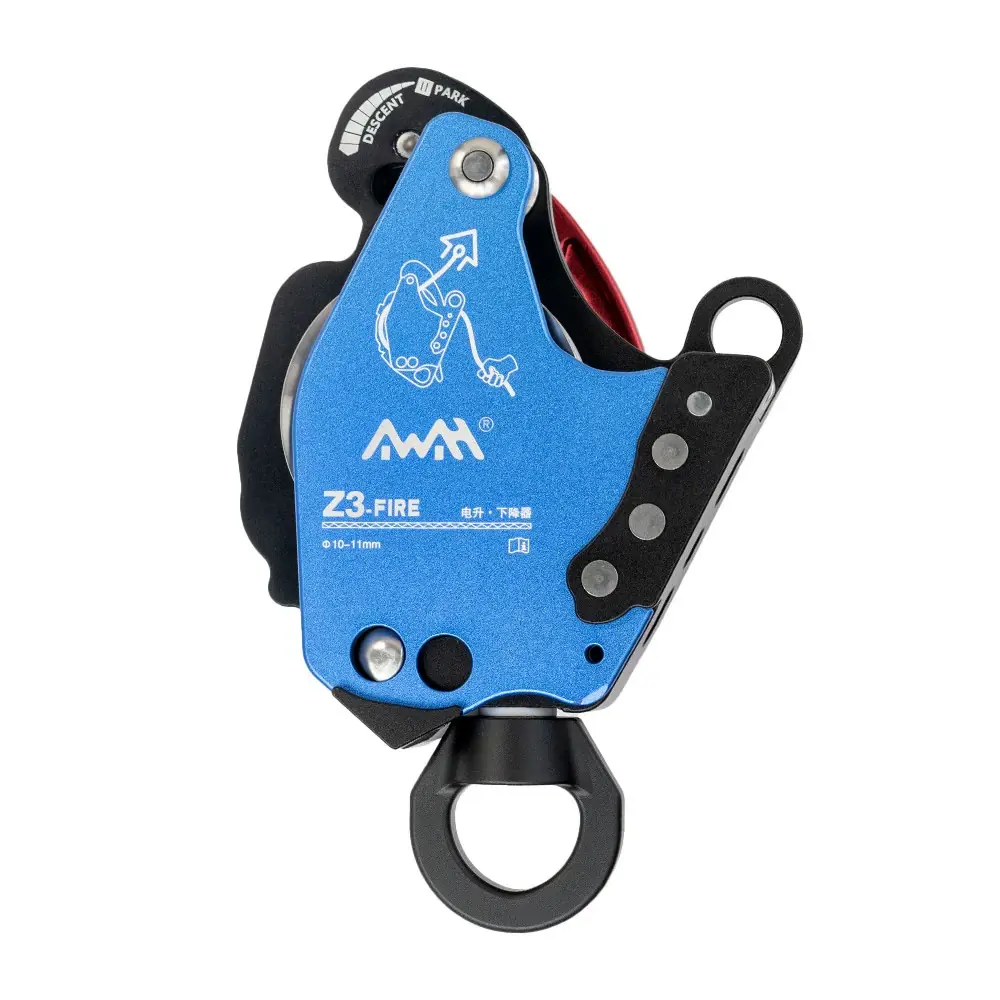

High-capacity fire rescue ascender and manual descender rated to 285 kg. Integrated swivel, 1 friction block, and 3 rope guide wheels for controlled descent under heavy loads. Built-in gearbox crash self-locking device. Electric lift: clockwise rotation. Built to XF 494-2023 standard for emergency response and technical rescue teams.
| Load Range | 30–285 kg |
|---|---|
| Weight | 2.33 kg |
| Rope | EN 1891 10–11 mm |
| Drill Torque | 120–180 Nm (clockwise) |

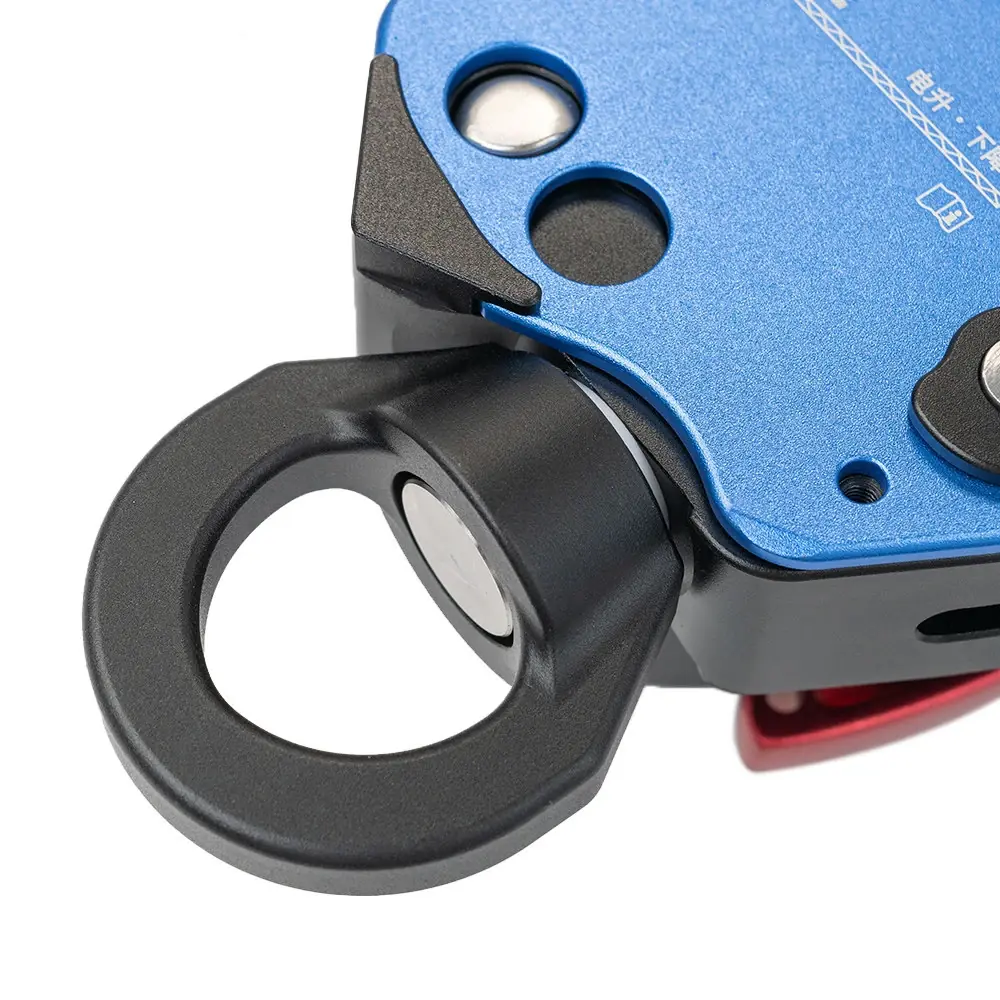

| Swivel | Yes (Rotary Joint) |
| Sub-Attachment MBS | 22 kN |
| Friction Block | Yes (1) |
| Guide Wheels | 3 |
| Gearbox Rating | IP66 |
| Gearbox Self-Locking | Yes (crash self-locking device) |
| Operating Temp | -15 °C to 45 °C |
| Standard | XF 494-2023 |
| Service Life | 6 years |
Applications
Where Z3-FIRE Excels
Purpose-built for emergency response where every second counts and failure is not an option.
Fire & Rescue
Rated to 285 kg with backup self-locking. CE-certified for emergency response. Swivel prevents rope twisting under load.
Technical Rescue
Confined space, high-angle, and swiftwater rescue operations where equipment reliability is mission-critical.
Military & SAR
Search and rescue, tactical deployment, and expeditionary operations. Built to perform in extreme environments.
